PalOne - Sensor to Cloud Gateway & Edge Point

PalOne device, is newest Internet of Things (IOT) hardware which allows inputs of data from your existing sensory infrastructure, or use of new sensors and inputs to take it to the cloud. We offer the best of both worlds, use existing infrastructure and connect it to the cloud, or mix existing and new sensors and inputs. Get more from your processes and data by collecting, visualizing and analyzing your data on many devices in the cloud.

Major Sensor Protocols Supported include, but are not limited to:

  • RS 485/Modbus
  • TTL Serial
  • Serial over USB any FTDI Based device
  • CAN Bus
  • 4-20mA
  • Flow Meters/Pulse Counts
  • Direct GPIO for analog and digital input in the 3.3/5V
  • Communication via Network, Wi-Fi, Cellular and Satellite

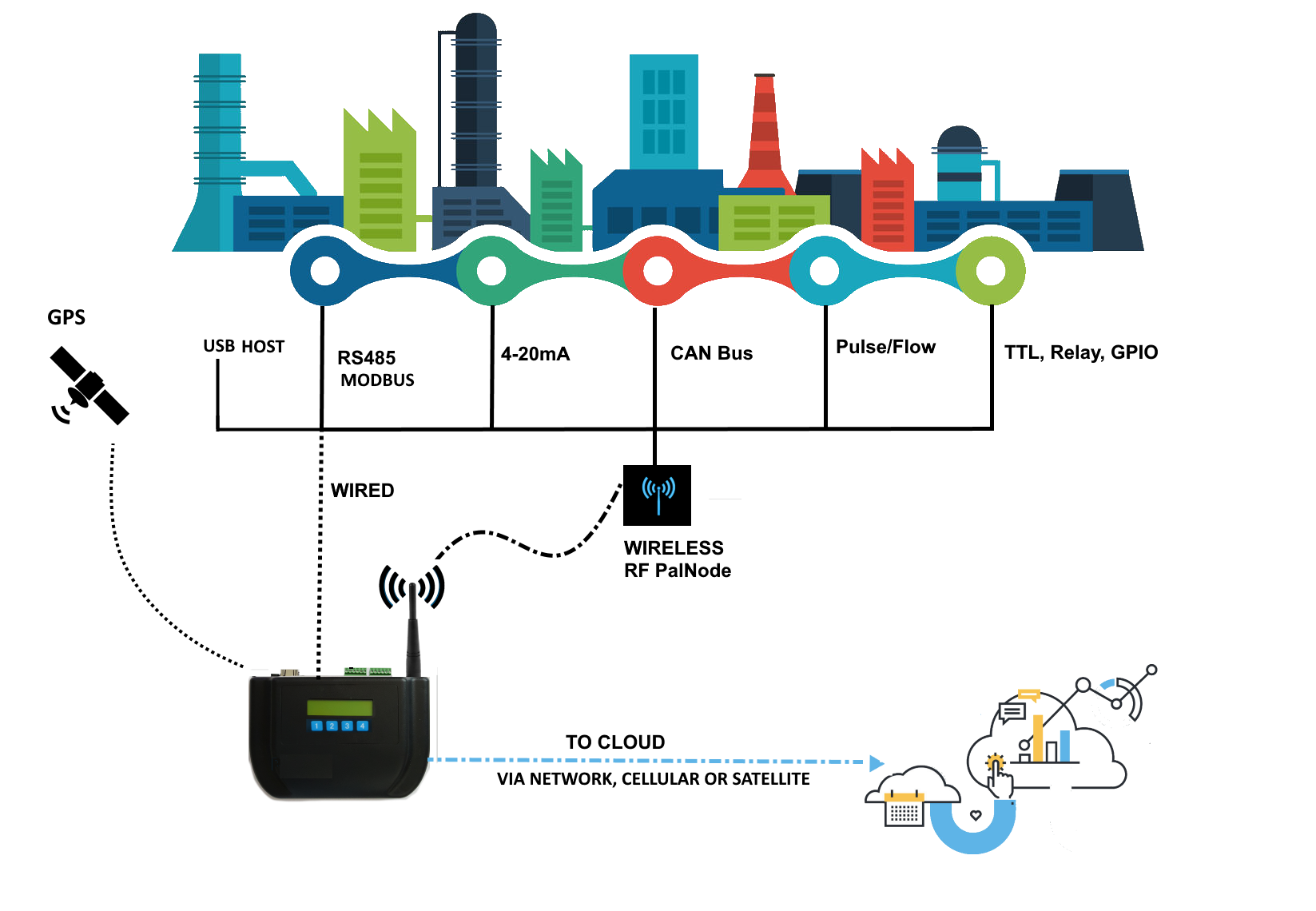

PalOne Sensor Gateway Connections

How it works

Decide what inputs and metrics you want to collect, store and analyze. Next, determine hardware needs, use of new and existing hardware. Finally, decide on internet and network connectivity.

1. Inputs and Metrics 2. Hardware Needs New/Existing or Mix    3. Network and Store Cloud or Company



PalOne Sensor Gateway Connections

Programming & Protocols Supported

Our devices support virtually unlimited protocols and technologies via custom programming. Support ouf of the box is provided for most standard M2M protocols and the following:

  • MQTT & AMQP Azure IoT Ready
  • REST API
  • Web Services
  • Modbus, including RTU to TCP gateway
  • USB Host - serial, storage, Web Cam and more
  • Customized Solutions per Specs

Connectivity

Input, collection and storing your data from sensors and inputs is supported in many ways. The device comes with onboard internet via standard internet connection, onboard Cellular 2G/3G/4G/LTE or Satellite connectivity. In addition, a node to node sensory wireless network is available, to connect distant nodes wirelessly via each other or to the internet and the cloud.


PalOne Sensor Network Cloud Connections

Analytics

Visualize and act based on the information gathered from the sensors. Setup alerts for critical events and when policies are met.

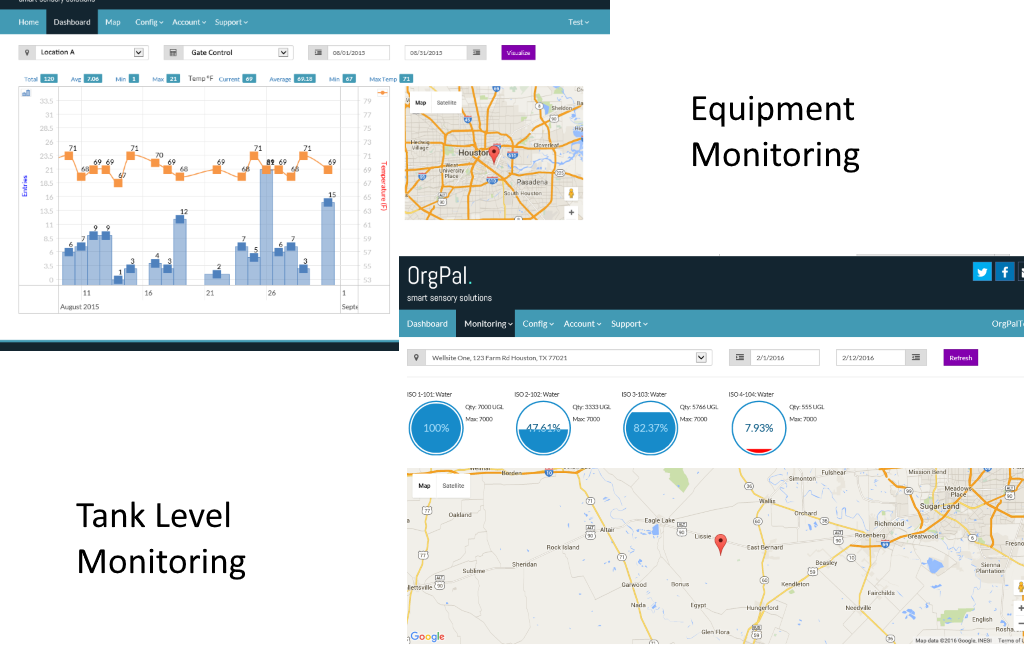

PalOne Sensor data analytics map
